Pachychoroid Neovasculopathy: A Deep Dive into a Choroidal Disease

Case Study

A 63-year-old male presented with complaints of gradual central vision distortion and blurred vision in his left eye over the past four months.

He denied any history of systemic diseases or previous ocular trauma. His best-corrected visual acuity was 20/30 in the affected eye.

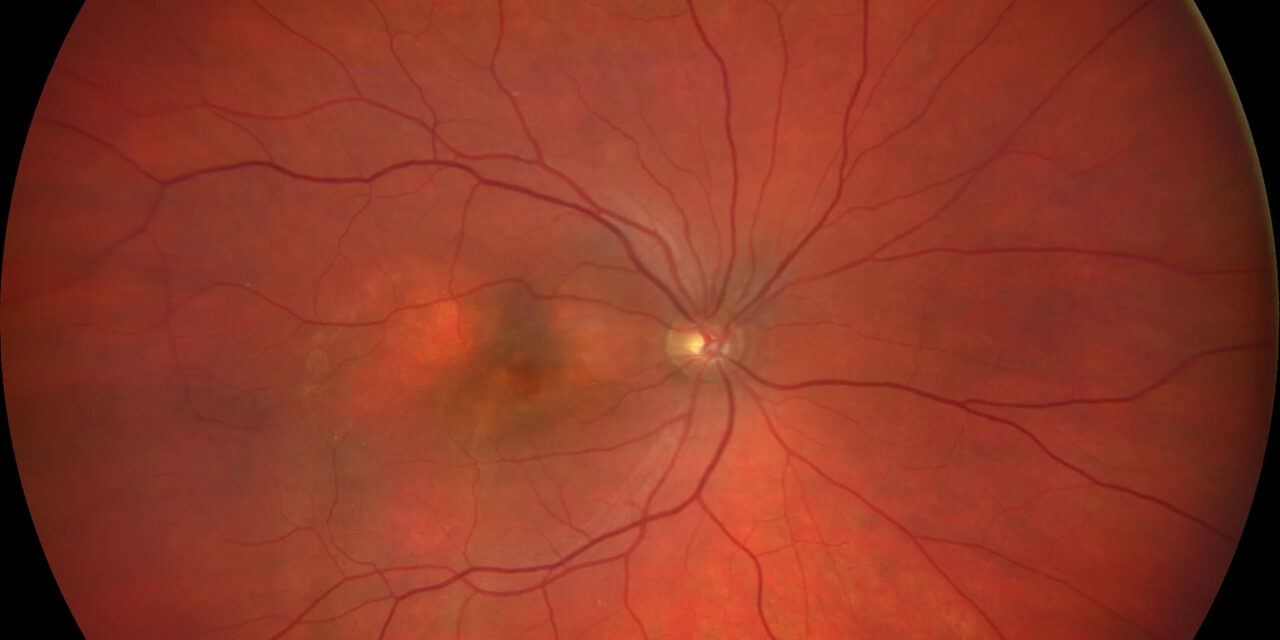

Fundus examination revealed pigmentary changes at the macula with subretinal fluid. Optical coherence tomography (OCT) showed pachychoroid features, including increased choroidal thickness and dilated Haller’s layer vessels.

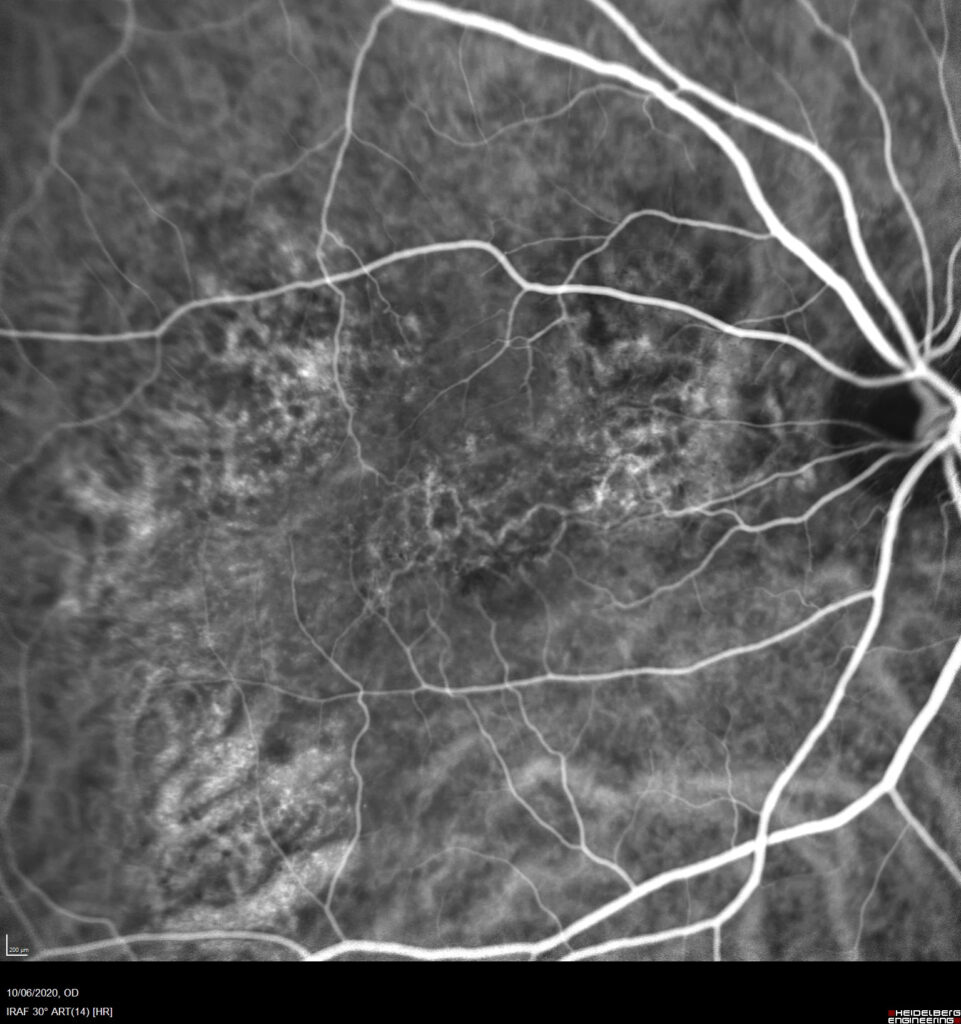

Fundus fluorescein angiography (FFA) and indocyanine green angiography (ICGA) revealed type 1 choroidal neovascularization (CNV).

A diagnosis of Pachychoroid Neovasculopathy (PNV) was made. The patient received intravitreal anti-VEGF therapy with noticeable anatomical and functional improvement.

Disease Entity

Pachychoroid Neovasculopathy (PNV) is a relatively recent and distinct clinical entity within the pachychoroid disease spectrum.

It is characterized by type 1 choroidal neovascularization (CNV) occurring in eyes with a thickened choroid and other features typical of pachychoroidopathies, such as pachyvessels, attenuation of the choriocapillaris, and retinal pigment epithelium (RPE) changes.

Test your knowledge 10 questions from this article

Pathophysiology

PNV arises due to chronic choroidal thickening and congestion that leads to RPE stress and subsequent breakdown of Bruch’s membrane.

This chronic stress promotes the development of type 1 CNV beneath the RPE.

The hallmark of pachychoroid spectrum diseases is the presence of dilated outer choroidal vessels (Haller’s layer), which compress the overlying choriocapillaris, potentially leading to hypoxia and neovascularization.

Unlike typical age-related macular degeneration (AMD), drusen are absent or minimal in PNV, suggesting a different pathogenic mechanism.

Epidemiology

PNV is most commonly seen in middle-aged to elderly individuals, often between the ages of 50 and 70.

There is a male predominance, and patients typically present with unilateral symptoms, although bilateral involvement can occur.

It may evolve from other pachychoroid disorders, such as chronic central serous chorioretinopathy (CSCR).

Clinical Features

Patients with PNV often present with:

Central vision distortion (metamorphopsia)
Blurred vision
Relative preservation of visual acuity initially

On fundus examination:

Subretinal fluid
RPE changes
Absence of soft drusen

OCT imaging is critical and typically reveals:

Increased subfoveal choroidal thickness (>300 µm)
Pachyvessels
Type 1 CNV
Irregular RPE elevation
Subretinal fluid

ICGA may show hyperpermeability and dilated choroidal vessels, while FFA reveals leakage from CNV.

Examination Findings

Visual Acuity: Mildly to moderately reduced
OCT: Subretinal fluid, pachychoroid features, flat, irregular pigment epithelial detachment
FFA: Late leakage suggestive of CNV
ICGA: Dilated choroidal vessels with hyperpermeability
OCT-A: Demonstrates the neovascular network in the avascular outer retina

Differential Diagnosis

Neovascular (wet) AMD
Polypoidal choroidal vasculopathy (PCV)
Chronic central serous chorioretinopathy (CSCR)
Idiopathic CNV
Pattern dystrophies

Distinguishing features include the absence of drusen and the presence of pachychoroid features without the polyps seen in PCV.

Diagnosis

The diagnosis is based on multimodal imaging findings that include:

Type 1 CNV
Pachychoroid features on OCT (increased choroidal thickness, pachyvessels)
No or minimal drusen
ICGA showing choroidal hyperpermeability

OCT-Angiography is particularly helpful in delineating the CNV complex.

Management

Intravitreal Anti-VEGF Therapy:

First-line treatment (e.g., ranibizumab, aflibercept, bevacizumab)
Typically results in anatomical and visual improvement

Photodynamic Therapy (PDT):

Considered in chronic or recurrent cases or when anti-VEGF monotherapy is insufficient
Can be used in combination with anti-VEGF for a synergistic effect

Monitoring:

Regular follow-up with OCT to monitor CNV activity
Adjust treatment interval based on response (treat and extend approach)

Prognosis

With early and appropriate treatment, the prognosis of PNV is generally favorable. Many patients respond well to anti-VEGF therapy, with a reduction in subretinal fluid and stabilization or improvement in visual acuity.

However, recurrence is possible, and some patients may develop chronic disease with RPE damage and fibrosis.

Prevention

As PNV is not associated with traditional AMD risk factors like smoking or drusen, there are no established preventive measures. However:

Regular follow-up for patients with pachychoroid features
Prompt treatment of CSCR
Avoidance of corticosteroid use when not necessary (due to CSCR risk)

References

Pang CE, Freund KB. Pachychoroid neovasculopathy. Retina. 2015 Jan;35(1):1-9.
Dansingani KK, Balaratnasingam C, Freund KB. Understanding aneurysmal type 1 neovascularization (polypoidal choroidal vasculopathy): A lesson in the taxonomy of “expanded spectra” – A review. Clin Exp Ophthalmol. 2018;46(2):189–200.
Miyake M, Ooto S, Yamashiro K, et al. Pachychoroid neovasculopathy and age-related macular degeneration. Sci Rep. 2015;5:16204.
Cheung CMG, Lee WK, Koizumi H, Dansingani K, Lai TYY, Freund KB. Pachychoroid disease. Eye. 2019;33(1):14–33.
Matsumoto H, Hiroe T, Imai H, et al. Clinical characteristics of pachychoroid neovasculopathy. Invest Ophthalmol Vis Sci. 2015;56(9):620–627.
